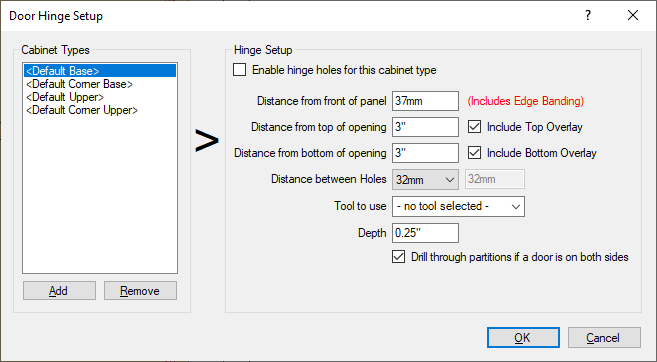

Cabinet Types: This shows the cabinets or cabinet types to set hinge holes on. The default is all Bases, Corner Bases, Uppers or Corner Uppers can be set up or just individual cabinet types like just sinks, pantries, etc can be set for hinge holes.

Distance From Front of Panel (Includes Edge Banding): This sets the distance from the front of the panel, INCLUDING edge banding. By default the distance is set to 37mm.

Distance From Top of Opening: This sets the distance from the top of the opening to the center point of the 2 hinge holes.

• Include Top Overlay: Setting this means that the distance adjusts automatically with the overlay.

Distance From Bottom of Opening: This sets the distance from the bottom of the opening to the center point of the 2 hinge holes.

• Include Bottom Overlay: Setting this means that the distance adjusts automatically with the overlay.

Distance Between Holes: This sets the distance between the holes. By default the distance is 32mm, but other options are 64mm and Custom.

Tools to Use: This sets what tool to drill the holes with.

Depth: How deep to drill the holes into the side panel.

Drill Through Partitions if a Door is on Both Sides: Check this if doors are in the same position on both sides of a partition.
